US Patent No. 7,614,901

Balanced interconnector

There is disclosed a balanced interconnector comprising first and second like connecting elements, each of the connecting elements comprising an elongate center section and a pair of parallel IDCs opening in substantially opposite directions, the IDCs attached substantially at right angles to and at opposite ends of the elongate center sections, each of the connecting elements lying in different parallel plains. The first and second connecting elements are arranged such that the elongate center sections are opposite one another and the IDCs of the first connecting element are not opposite the IDCs of the second connecting element. In a particular embodiment the connecting elements of adjacent pairs of connecting elements are at right angles. The positioning and geometry of the connecting elements.

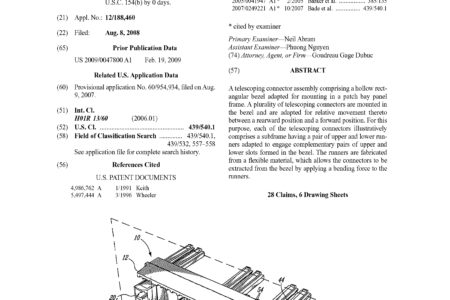

US Patent No. 7,645,160

Telescoping connector assembly

A telescoping connector assembly comprising a hollow rectangular bezel adapted for mounting in a patch bay panel frame. A plurality of telescoping connectors are mounted in the bezel and are adapted for relative movement thereto between a rearward position and a forward position. For this purpose, each of the telescoping connectors illustratively comprises a subframe having a pair of upper and lower runners adapted to engage complementary pairs of upper and lower slots formed in the bezel. The runners are fabricated from a flexible material, which allows the connectors to be extracted from the bezel by applying a bending force to the runners.

US Patent No. 7,422,467

Balanced interconnector

There is disclosed a balanced interconnector comprising first and second like connecting elements, each of the connecting elements comprising an elongate center section and a pair of parallel IDCs opening in substantially opposite directions, the IDCs attached substantially at right angles to and at opposite ends of the elongate center sections, each of the connecting elements lying in different parallel plains. The first and second connecting elements are arranged such that the elongate center sections are opposite one another and the IDCs of the first connecting element are not opposite the IDCs of the second connecting element. In a particular embodiment the connecting elements of adjacent pairs of connecting elements are at right angles. The positioning and geometry of the connecting elements.

US Patent No. 7,249,962

Connector assembly

A connector assembly for interconnecting an end of a cable comprising one or more twisted pair conductors, each of the conductors enveloped in an insulating covering, with the bifurcated contacts of a connecting block. The assembly comprises an insulated housing and a plurality of non-contacting conductive terminals disposed in the housing. Each of the terminals comprises a blade exposed along a front face of the housing and adapted to be inserted into one of the bifurcated contacts, and a piercing mechanism comprising at least one tooth. Each of the conductors is terminated by one of the terminals, the teeth puncturing the insulated covering of a free end of the conductor thereby bringing the terminal into conductive contact with the conductor.

US Patent No. 11,258,204

Compensating connector system

A connector and assembly of a cabling category and comprising two mating zones connected by an intermediate zone. Each of the zones is manufactured such that Near End Cross Talk (NEXT) resulting from transmission of the high frequency signal across each zone is below a specified amount chosen such that NEXT introduced by a high frequency signal transmission between via all the zones is below a level as specified for the cabling category.

US Patent No. 11,187,864

Fiber optic cassette system with reversible cassettes

A reversible fiber optic cassette for mounting with other like cassettes in a rack comprising a cassette receiving tray, the tray comprising a plurality of cassette engaging features on an upper surface is disclosed. The cassette comprises N duplex pairs of optic fiber receptacles arranged along a front thereof, a multifiber receptacle on a back thereof and 2*N optic fiber segments each between a respective one of the optic fiber receptacles and the multifiber receptacle, N discrete port identifiers on a first surface thereof and N discrete port identifiers on a second surface opposite the first surface. The first set of N identifiers is the same as the second set of N identifiers and for M between 1 to N, an Mth port identifier of the first set and an (N-M+1)th port identifier of the second set is adjacent an Mth one of the duplex pairs of optic fiber receptacles.

US Patent No. 10,928,603

Patch panel system with tiltable tray and multiposition lock and release mechanism

A patch panel system is disclosed comprising a plurality of trays wherein each tray is stored within a patch panel housing but moveable towards the front of the housing into one of a patch position or an extended position. The tray is lockable in either the patch position or the extended position. In the extended position a front tray section holding one or more fiber optic connectors or modules is tiltable versus a rear tray section. In particular embodiment the tray can also be moved from the stored position into a retracted position behind the housing. A release mechanism comprising a lock is also provided which can be actuated to release the lock thereby allowing the tray to be slid out of the patch position and the extended position.

US Patent No. 10,897,101

Coupler connector and cable terminator with side contacts

An assembly comprising a cable terminator comprising a wire guide, a cube shaped securing cap comprising an open end for installation over the wire guide, and pairs of piercing contacts for piercing respective conductors of the cable. When assembled, an outer end of each of the piercing contacts is exposed on an outer surface of a respective securing cap sidewall. The assembly also comprises a coupler connector comprising one of a modular (for example RJ-45 compatible) socket or a modular (for example RJ-45 compatible) plug, a rearward surface comprising a cable terminator receiving socket, wherein pairs of contacts are exposed along at least one side wall of the socket, and further wherein each of a plurality of the tines in the modular socket or the terminal contacts of the plug is interconnected with a respective one of the contacts.

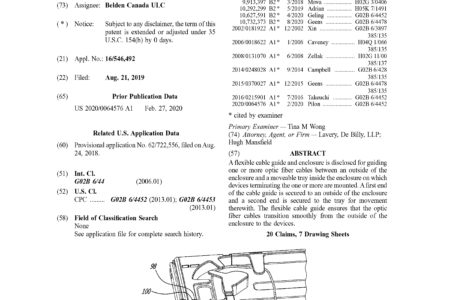

US Patent No. 10,866,379

Flexible cable guide

A flexible cable guide and enclosure is disclosed for guiding one or more optic fiber cables between an outside of the enclosure and a moveable tray inside the enclosure on which devices terminating the one or more are mounted. A first end of the cable guide is secured to an outside of the enclosure and a second end is secured to the tray for movement therewith. The flexible cable guide ensures that the optic fiber cables transition smoothly from the outside of the enclosure to the devices.

US Patent No. 10,809,479

Fiber optic cassette system with reversible cassettes

A reversible fiber optic cassette for mounting with other like cassettes in a rack comprising a cassette receiving tray, the tray comprising a plurality of cassette engaging features on an upper surface is disclosed. The cassette comprises N duplex pairs of optic fiber receptacles arranged along a front thereof, a multifiber receptacle on a back thereof and 2*N optic fiber segments each between a respective one of the optic fiber receptacles and the multifiber receptacle, N discrete port identifiers on a first surface thereof and N discrete port identifiers on a second surface opposite the first surface. The first set of N identifiers is the same as the second set of N identifiers and for M between 1 to N, an Mth port identifier of the first set and an (N-M+1)th port identifier of the second set is adjacent an Mth one of the duplex pairs of optic fiber receptacles.
