US Patent No. 10,795,107

Modular fiber optic cassette, system and method

A modular fiber optic cassette system, method and cassette is disclosed. The system comprises a case defining a tray receiving space and an opening to a tray receiving space, at least one tray slideably received within the case for movement between a stored position wherein the tray is inside the case and an accessible position wherein a front end of the tray is in front of the opening and outside of the case, a plurality of fiber optic cassettes arrangeable side by side along the tray front end, a first of the cassettes comprising a first cassette width of one of one, two, three, four or six standard width units and a second of the cassettes comprising a second cassette width different from the first cassette width and one of one, two, three, four or six standard width units, and a fastener assembly for removeably securing each of the cassettes to the tray.
US10795107B2 – Modular fiber optic cassette, system and method – Google Patents

US Patent No. 10,782,489

Fiber optic connector

A fiber optic connector comprising a fusion assembly for strengthening a splice point. The fusion assembly comprises an elongate mechanical support positioned adjacent the splice point and snugly encased by a flexible tube. In one embodiment, a meltable adhesive in the form of a hollow tube is positioned over the splice point and the flexible tube comprises a heat shrinkable material. In another embodiment, the mechanical support is an elongate plate having a concave surface positioned adjacent the splice point and a C shaped cross section.

US Patent No. 10,768,387

Cross connect system and tray

A fiber optic cross connect system comprising a case defining a tray receiving space and at least one tray slideable in and out of the space between a first closed position, a second intermediate position and a third open or accessible position and a sliding engagment between a sidewall of the case and a side edge of the tray is disclosed. The sliding engagment comprises an elongate link member which is stationary as the tray is moved between the first closed position and the second intermediate position and moves with the tray as the tray is moved between the second intermediate and the third open position and such that the elongate link member does not interfere with fiber optic cables which are interconnecting external devices with devices on the tray. In a particular embodiment the link member is held stationary by a releasable locking mechanism.

US Patent No. 10,656,359

Fiber optic cassette system with slantable connector

A fiber optic cassette and system is disclosed. The cassette is mountable on a tray in parallel to and adjacent to at least one other like cassette. Each cassette comprises an housing having an axis, a first optic fiber connector-receiving receptacle along a housing front face for receiving at least one first optic fiber, a second optic fiber connector-receiving receptacle along a housing rear face for receiving at least one second optic fiber, and at least one third optic fiber within the housing, the third optic fibers interconnecting respective ones of the first optic fibers and the second optic fibers. The rear optic fiber connector-receiving receptacle is moveable in a horizontal plane between a first position wherein the rear receptacle is arranged at a first angle to the axis and a second position wherein the rear receptacle is arranged at a second angle to the axis.

US Patent No. 10,598,884

Fiber optic cassette system with releasable engagement

A modular fiber optic cassette and tray assembly is disclosed. The assembly comprises a tray engaging part which engages with a cassette engaging part on the tray and such that the cassettes may be arranged horizontally side by side on the trays. The cassettes are mounted to a front of a tray and such that a portion of each cassette is positioned in front of the tray. In an embodiment, a release mechanism such as a push button is provided on top of each cassette for disengaging the tray engaging part from the cassette engaging part. Still in another embodiment a plurality of trays and cassettes are provided stacked on top of one another.

US Patent No. 10,488,611

Dual direction fiber optic cassette system and fiber optic cassette

An optic fiber system for mounting in a rack, cassette and front plate are disclosed. A fiber optic cassette receives a pair of opposed rails on opposite inner surfaces of a housing. Catches on the fiber optic cassette comprise biased tabs which engage grooves within the rails thereby releasable securing the cassette into the housing. Catches may be provided at both ends of the cassette allowing the cassette to be inserted from either end of the housing. The cassette comprises removeable front plate which is secured to it using a snap fit. The removeable plate can be used either with the cassette or as a standalone within the housing.

US Patent No. 10,476,197

Coupler connector and cable terminator with side contacts

An assembly comprising a cable terminator comprising a wire guide, a cube shaped securing cap comprising an open end for installation over the wire guide, and pairs of piercing contacts for piercing respective conductors of the cable. When assembled, an outer end of each of the piercing contacts is exposed on an outer surface of a respective securing cap sidewall. The assembly also comprises a coupler connector comprising one of a modular (for example RJ-45 compatible) socket or a modular (for example RJ-45 compatible) plug, a rearward surface comprising a cable terminator receiving socket, wherein pairs of contacts are exposed along at least one side wall of the socket, and further wherein each of a plurality of the tines in the modular socket or the terminal contacts of the plug is interconnected with a respective one of the contacts.

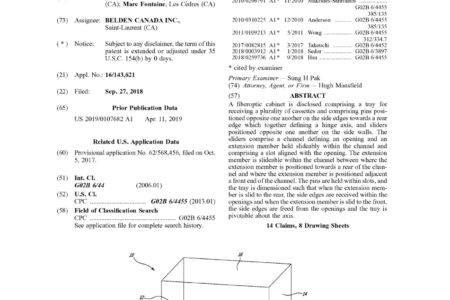

US Patent No. 10,359,595

Slide and tilt tray, slide and tray using same

A fiberoptic cabinet is disclosed comprising a tray for receiving a plurality of cassettes and comprising pins positioned opposite one another on the side edges towards a rear edge which together defining a hinge axis, and sliders positioned opposite one another on the side walls. The sliders comprise a channel defining an opening and an extension member held slideably within the channel and comprising a slot aligned with the opening. The extension member is slideable within the channel between where the extension member is positioned towards a rear of the channel and where the extension member is positioned adjacent a front end of the channel. The pins are held within slots, and the tray is dimensioned such that when the extension member is slid to the rear, the side edges are received within the openings and when the extension member is slid to the front, the side edges are freed from the openings and the tray is pivotable about the axis.

US Patent No. 10,332,429

Labelling system for rackmount case for the accommodation of optical equipment

A rackmount case for the accommodation of optical equipment and labelling tag is disclosed. The case comprises a box like housing comprising an end defining a rectangular opening, labelling tags each comprising a rectangular tag plate and a plurality of hinge elements arranged along an edge of the rectangular tag plate. At least one labelling tag receiving slot is within the housing for receiving one of the labelling tags. The slot comprises an opening adjacent the housing opening and a plurality of hinge elements adjacent the slot opening. The labelling tags are moveable between a first position, wherein the tags are held within the slot, and a second position wherein the tags are outside of the slot and each of the hinge elements is engaged by a respective of the second hinge elements such that the tags are rotatable about an axis in parallel to the slot opening.
